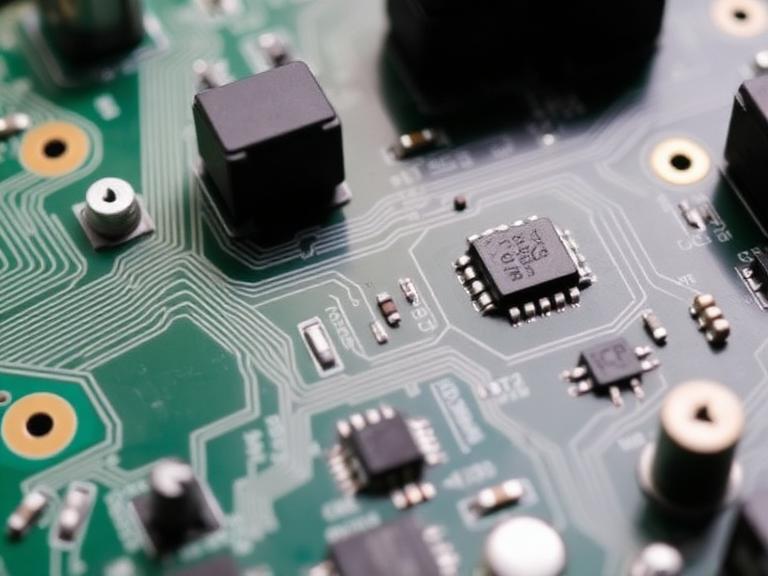

How to Tell if a Circuit Board is Bad: An Expert Diagnostic Guide
Introduction: The Heart of Electronic Systems
In the modern manufacturing and industrial landscape, printed circuit board assemblies (PCBAs) act as the central nervous system for virtually all electronic equipment. From life-saving medical devices to complex aerospace navigation systems, the reliable operation of these boards is non-negotiable. However, when a system powers down unexpectedly, malfunctions randomly, or emits the dreaded smell of burning ozone, technicians face an immediate critical question: how do you confirm if a circuit board is bad?
Table of Contents
- Introduction: The Heart of Electronic Systems
- Step 1: The Initial Visual Inspection
- Step 2: Diagnostic Testing with a Multimeter
- Step 3: Advanced Thermal and Oscilloscope Diagnostics
- The Wintech Approach: Engineering Out Failure
- Summary Table: Diagnostic Cheat Sheet
- Frequently Asked Questions (FAQs)
- Industry References
From our experience at Wintech, diagnosing electronic hardware failures requires a systematic, analytical approach. Many technicians rush to replace entire modules before verifying the root cause, leading to unnecessary downtime and inflated maintenance budgets. Knowing exactly how to determine if a circuit board is bad not only saves capital but also provides invaluable feedback for the engineering and manufacturing phases. As a provider of tailor made solutions for our customers, including high level, high difficult, large size, and complex structure PCB Layouts, we have analyzed thousands of failure points. In this comprehensive guide, we will walk you through the professional diagnostic protocols required to definitively conclude whether a circuit board is bad, and explore how superior manufacturing processes can eliminate these failures altogether.
Step 1: The Initial Visual Inspection
Before touching any diagnostic equipment, the first line of defense is always a thorough visual inspection under magnification. In many cases, you can immediately tell that a circuit board is bad just by examining its surface under a high-powered inspection microscope or a lighted magnifying loop. We recommend conducting this inspection in a highly illuminated, static-free environment.
Scorch Marks and Burnt Components
The most undeniable evidence that a circuit board is bad is the presence of scorch marks, melted plastic packaging, or blackened areas on the fiberglass substrate (FR4). When components like integrated circuits (ICs), MOSFETs, or power resistors draw excessive current due to a short circuit or thermal runaway, they catastrophic fail. This failure often releases the classic magic smoke and leaves a carbonized residue. If you observe cratering on the surface of an IC or a localized burn mark traversing the power planes, it is a definitive sign that the circuit board is bad and requires either micro-soldering component level repair or a complete replacement.
Swollen or Leaking Capacitors
Electrolytic capacitors are notoriously prone to degradation, especially in high-heat environments or power supply modules. To determine if a circuit board is bad due to capacitance failure, examine the aluminum tops of all cylindrical electrolytic capacitors. The tops should be perfectly flat. If you notice any bulging, doming, or a crusty brown dielectric fluid leaking onto the PCB substrate, the capacitor has failed. This drastically alters the equivalent series resistance (ESR) and removes the filtering capability of the board, leading to erratic system reboots and unstable voltage rails. From our experience, replacing these capacitors can often resurrect a board, but multiple blown capacitors usually indicate a deeper power regulation failure.
Cold Solder Joints and Fractured Traces
Mechanical stress, thermal cycling, and heavy vibration can wreak havoc on a PCB over time. During your visual inspection, scrutinize the solder joints, particularly those connecting heavy components like transformers, connectors, and heat sinks. A healthy solder joint should appear shiny and concave. A dull, grainy, or cracked joint is known as a cold solder joint. Furthermore, look for microscopic fractures in the copper traces. If a trace is severed, the electrical pathway is broken. When diagnosing whether a circuit board is bad, discovering widespread delamination, pad lifting, or fractured traces generally indicates that the board has reached the end of its mechanical lifespan.
Step 2: Diagnostic Testing with a Multimeter
If the visual inspection yields no obvious physical damage, the next phase of troubleshooting involves electrical testing. A high-quality digital multimeter (DMM) is the technician's best tool for establishing if a circuit board is bad beneath the surface. Ensure the board is completely disconnected from all power sources and that all large capacitors are safely discharged before beginning this phase.
Testing Power Supply Rails for Shorts
One of the most common reasons a circuit board is bad is a dead short across the power supply rails. Set your multimeter to the continuity or resistance (Ohms) setting. Place one probe on the main ground plane (or a grounding pin) and the other probe on the main voltage input rail (VCC, 5V, 3.3V, etc.). If the multimeter beeps continuously or displays a resistance reading close to zero ohms, you have a dead short to ground. This means a component on that rail has internally failed and bridged the power directly to ground, which will instantly blow fuses or trip the power supply's overcurrent protection. Discovering a VCC-to-ground short is a prime indicator that the circuit board is bad and requires component isolation to find the specific culprit.
Checking Continuity Across Traces
If you suspect physical damage that was not visible to the naked eye, you must verify the continuity of the traces. Set the multimeter to the continuity function and probe both ends of a suspected broken trace or via. If the meter does not beep, the electrical path is open. Additionally, you should test the resistance of onboard fuses, zero-ohm resistors, and inductors. These components should read close to zero ohms. An infinite resistance reading across a surface-mount fuse is a clear sign that a fault condition occurred, leading to the conclusion that the circuit board is bad or, at the very least, needs component replacement.
Step 3: Advanced Thermal and Oscilloscope Diagnostics
When dealing with high-frequency signals, logic errors, or intermittent power issues, visual inspections and basic multimeters are not enough. We recommend utilizing oscilloscopes and thermal imaging cameras for complex diagnostics.
A thermal imaging camera is an incredible tool for finding parasitic draws and localized short circuits. By applying a very low, current-limited voltage to the board, a thermal camera will instantly highlight any component that is drawing excessive current and heating up unnaturally. If a specific microcontroller or voltage regulator glows white-hot on the thermal screen while the rest of the board is at room temperature, that specific sector of the circuit board is bad.
Similarly, an oscilloscope allows engineers to visualize the signal integrity. If you are probing a data line or a clock signal and the waveform appears distorted, noisy, or completely flatlined despite proper voltage being supplied, the logic gates within the IC have likely failed. This level of signal degradation firmly confirms that the circuit board is bad at a microelectronic level.
The Wintech Approach: Engineering Out Failure
While knowing how to identify if a circuit board is bad is crucial for repair technicians, the ultimate goal of any world-class OEM is to prevent the board from failing in the first place. This requires a foundation built on rigorous engineering, premium material selection, and flawless assembly processes.
Wintech is a full turnkey service, high-mix, low to mid volume electronics manufacturing and custom material solutions provider with a proven track record of supplying state-of-the-art solutions to all global customer bases. From our experience, premature board failures are almost always the result of compromised design tolerances or substandard assembly environments.
Full Turnkey Service and Preventative Manufacturing
We prevent the scenario where your client discovers a circuit board is bad in the field by utilizing our comprehensive, tailor made solutions for our customers. Many of the world's top 500 enterprises have cooperated with us for many years because Wintech is worth relying on for mission-critical applications. Our integrated services ensure quality at every step of the product lifecycle:
- PCB Design & Layout: Our engineering team specializes in high precision PCB Layout, ensuring optimal thermal management, correct impedance routing, and robust trace widths to prevent burnout and crosstalk.
- PCB Manufacturing: We utilize advanced substrates and precision etching to eliminate the risk of internal delamination or trace fracturing, even in high difficult, large size, and complex structure boards.
- PCB Assembly & PCBA SMT: By utilizing state-of-the-art Surface Mount Technology, we eradicate the cold solder joints and misalignment issues that typically cause a circuit board to fail.
- Quick Turn Fast PCB Prototype Assembly: We allow our clients to thoroughly test and validate their designs in real-world conditions before committing to full-scale production.
- New Product Introduction NPI: Our NPI process transitions your prototype to mass production smoothly, identifying and eliminating any potential manufacturing defects early.
- Plastic Molding & Metal Precision Machining: A circuit board must be protected from its environment. We provide custom molding and machining to ensure the PCB is securely mounted and shielded from vibration and impact.
- Enclosures & Racks & Frames: We supply turnkey complete products full systems electronic contract manufacturing solutions. By providing the final enclosures, we control the thermal dissipation of the entire unit, drastically extending the life of the PCBA.
By controlling prototyping, low to mid volume, and mass production under one roof, Wintech ensures that the phrase "the circuit board is bad" becomes a rarity rather than a routine occurrence for your product lines.
Summary Table: Diagnostic Cheat Sheet
To assist your maintenance teams and quality assurance engineers, we have compiled a quick-reference summary table outlining the primary symptoms and diagnostic methods used to determine if a circuit board is bad.
| Diagnostic Method | Observed Symptom | Conclusion / Root Cause |
|---|---|---|
| Visual Inspection | Scorch marks, carbon tracking, melted ICs | Catastrophic overcurrent; circuit board is bad. |
| Visual Inspection | Bulging or leaking electrolytic capacitors | Capacitor failure, power filtering compromised. |
| Visual Inspection | Dull, cracked, or loose solder joints | Cold solder joint; mechanical stress or poor thermal profile during SMT. |
| Multimeter Testing | Continuity beep between VCC and Ground | Dead short on the power rail; board requires component isolation. |
| Multimeter Testing | Infinite resistance across onboard fuse | Blown fuse; indicates a fault condition elsewhere on the board. |
| Thermal Imaging | Localized hotspot on specific IC under low power | Internal IC short circuit; component requires replacement. |
| Oscilloscope | Distorted, noisy, or missing clock signals | Logic gate or oscillator failure; signal integrity is compromised. |
Frequently Asked Questions (FAQs)
Can you fix a circuit board if it is bad?
It depends entirely on the extent of the damage. If a circuit board is bad due to a single blown capacitor or a cold solder joint, it can easily be repaired by a skilled technician using micro-soldering techniques. However, if the board has suffered massive thermal damage, internal multi-layer trace burning, or extensive liquid corrosion, we recommend replacing the entire PCBA, as reliability can no longer be guaranteed.
What causes a circuit board to burn out?
Burnouts are typically caused by thermal runaway, voltage spikes, power surges, or incorrect polarity connections. When a component draws more current than it is rated for, it dissipates that excess energy as heat, eventually melting the packaging and scorching the FR4 substrate beneath it. This is why Wintech's rigorous PCB Design & Layout phase focuses heavily on thermal management.
How do I test a circuit board without a multimeter?
While a multimeter is the standard tool, you can begin by using your senses. Perform a detailed visual inspection for burnt areas or swollen components. Use your sense of smell to detect the distinct odor of burnt epoxy or ozone. You can also listen for high-pitched whining (coil whine) or clicking from failing relays. However, to definitively prove a circuit board is bad, electrical testing is eventually required.
Why do cold solder joints happen?
Cold solder joints occur when the solder does not melt completely or cool properly during the manufacturing process, resulting in a weak, brittle electrical connection. This is generally caused by an incorrect thermal reflow profile or contaminated component pads. Utilizing a high-tier PCB Assembly & PCBA SMT provider like Wintech eliminates these issues through strict quality control and automated optical inspection (AOI).
