Introduction

Circuit board assembly services are a crucial step in the electronics manufacturing process. These services ensure that all components are accurately placed, soldered, and tested on a printed circuit board (PCB) to create a fully functional electronic device. In today's fast-paced, high-tech industries, choosing a qualified assembly partner is essential to ensure product quality, functionality, and time-to-market. Wintech PCB Assembly & PCBA SMT offers industry-leading solutions with cutting-edge capabilities.

What Is Circuit Board Assembly?

Printed Circuit Board Assembly (PCBA) refers to the process of soldering or assembling electronic components onto a PCB. It involves multiple stages including component placement, soldering, inspection, and testing. Unlike PCB fabrication (which produces the blank board), PCBA focuses on mounting components like resistors, capacitors, ICs, and connectors.

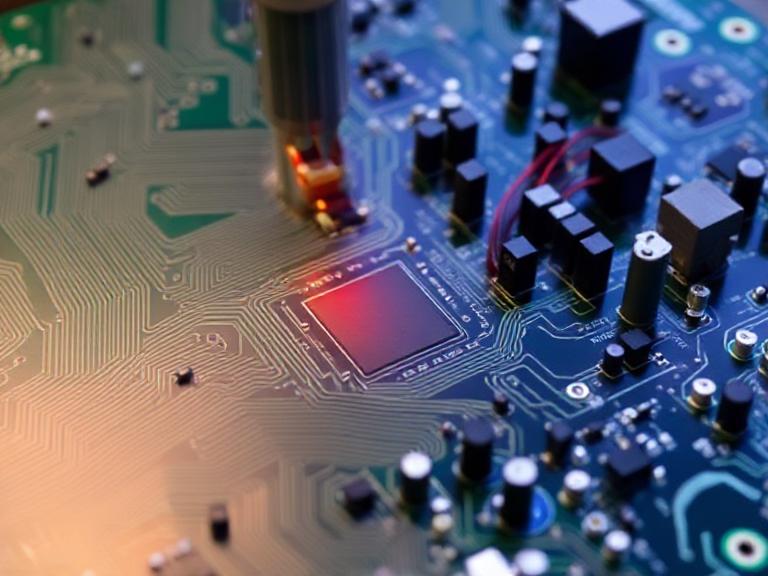

Typical PCBA Services Include:

• Surface Mount Technology (SMT)
• Through-Hole Technology (THT)
• Mixed Assembly
• Functional Testing and Inspection
• Final Product Assembly

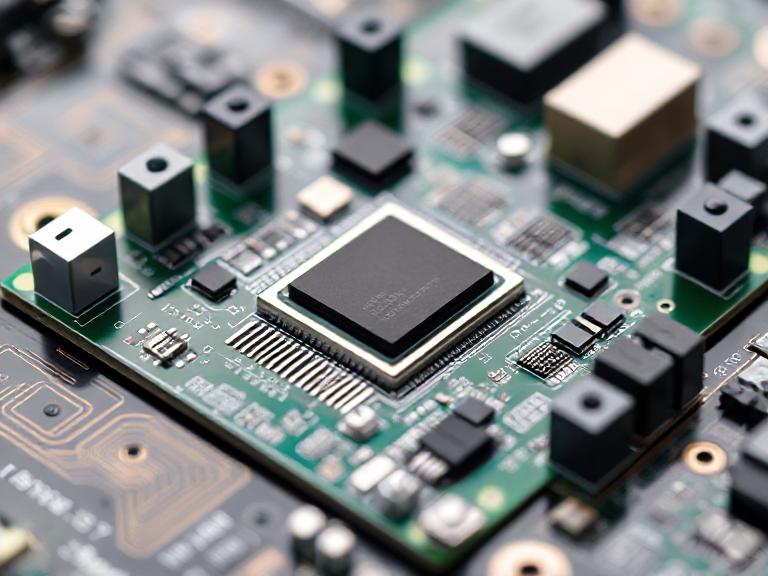

Core Components of PCBA Services

A comprehensive PCBA service involves multiple steps, from design and prototyping to final assembly.

1. Expert PCB Design Services

• DFM (Design for Manufacturability) checks
• Signal integrity analysis and layout optimization
• High-density interconnect (HDI) planning

2. Component Sourcing and Handling

• Procurement of active and passive components
• IC programming and handling of micro-sized packages
• Support for Package sizes down to 03015 and 01005

3. SMT Assembly

• Automatic component placement at speeds of 420K/hour per line
• Vision-guided stencil printing
• Solder paste dispensing and 3D inspection

4. Through-Hole Assembly

• Automated and semi-automated plated through-hole (PTH) insertion
• Highly flexible wave solder systems
• Selective soldering for sensitive assemblies

Advanced Technologies in Circuit Board Assembly

Modern electronics require tight tolerances and high-density interconnects, which demand precision equipment and skilled engineering.

1. MicroBGA and Fine-Pitch Capabilities

• Production support down to 0.5 mm pitch
• Advanced processes supporting 0.3 mm pitch

2. Package-on-Package (PoP) Assembly

• Supports high-density vertical stacking
• Improves space utilization for compact devices

3. Column Grid Arrays and Ceramic Standoffs

• Enhanced mechanical stability for industrial applications
• Used in high-reliability environments

Quality Control and Inspection Processes

Every reliable assembly service provider must ensure consistent performance through rigorous quality checks.

1. Automated Optical Inspection (AOI)

• Checks solder joints, polarity, and component presence
• Used post-assembly for SMT and THT boards

2. Oblique X-Ray Inspection

• Used for Failure Analysis of hidden solder joints (e.g., BGAs)
• Improves fault detection without disassembling boards

3. Process Characterization and Cleanroom Options

• Upfront process characterization ensures optimized yield
• Assembly in clean zones with FOD and ESD controls

Materials and Substrate Options

Wintech supports a wide range of materials and finishes to meet thermal, dielectric, and environmental specifications.

1. Flex and Rigid-Flex PCBs

• Ideal for compact, bendable electronics
• Multiple finishes: Bare copper, OSP, ENiAg, ENiAu

2. Alternative Laminates

• Options include aluminum and copper core
• Designed for high-heat or power devices

3. High Dielectric PCBs

• Support for 20+ layers
• Controlled impedance for RF and high-speed circuits

Value-Added PCBA Services

Beyond the standard PCBA processes, leading manufacturers like Wintech offer specialized and customizable services.

1. Conformal Coating

• Protects circuits from moisture, dust, and corrosion
• Available in silicon-based, acrylic, and urethane coatings

2. Automatic Transfer and Cleaning Systems

• SMEMA-compliant automatic boat transfer system
• Uses linear aqueous or semi-aqueous cleaners for residue removal

3. Final Assembly and Box Build

• Full integration of PCBA into final enclosures
• Functional testing and packaging

Why Choose Wintech for PCB Assembly

Wintech PCB Assembly & PCBA SMT offers cutting-edge capabilities backed by experience and engineering excellence.

• Handles ultra-small 03015 and 01005 components
• Advanced SMT with 420K component placements/hour
• PoP, MicroBGA, high layer count, and thermal substrate expertise
• Comprehensive QA and FOD/ESD-controlled cleanroom environments
• Seamless process integration from PCB design to final assembly
