What is the Assembly Process of a Printed Circuit Board (PCB)?
Table of Contents
- Introduction
- Overview of PCB Assembly
- Step-by-Step PCB Assembly Process
- Wintech: Your Turnkey PCB Assembly Partner
- Conclusion
- Summary Table
Introduction
Printed Circuit Boards (PCBs) are the foundation of most electronic devices. Whether it's a simple gadget or a sophisticated industrial system, a properly assembled PCB ensures optimal performance. The PCB assembly process transforms a bare board into a functioning circuit by mounting and soldering electronic components.

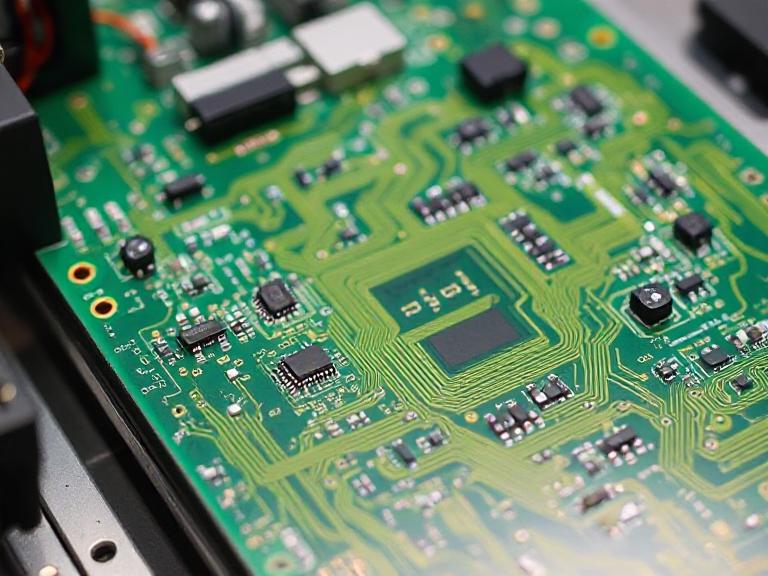

.jpg "Assembly Process of a Printed Circuit Board (PCB)")
Overview of PCB Assembly
The PCB assembly process, also known as PCBA (Printed Circuit Board Assembly), involves several technical steps including component placement, soldering, and rigorous testing. There are two major technologies used:
- SMT (Surface Mount Technology): Involves mounting components directly onto the surface of the PCB.
- THT (Through-Hole Technology): Components are inserted through holes and soldered to the opposite side of the board.
Step-by-Step PCB Assembly Process
1. PCB Design and Layout
The assembly process begins with PCB design. Engineers use software like Altium Designer or Eagle to plan the layout, define layers, and prepare Gerber files. This phase defines the electrical routing and ensures manufacturability.
2. Material Preparation
Next, all components and raw PCBs are prepared. Each part is verified for compliance, and BOM (Bill of Materials) is checked. The PCBs are cleaned to ensure there are no contaminants that could hinder soldering.
3. Solder Paste Stenciling
A stainless steel stencil is placed over the board, and solder paste is applied to the pads. This paste contains tiny solder balls and flux to help with adhesion.
4. Pick and Place
Automated pick-and-place machines position SMD components on the board. This step is highly precise and essential for modern high-density PCBs.
5. Reflow Soldering
Once components are placed, the board enters a reflow oven. The solder paste melts and forms permanent joints. Temperature profiles are tightly controlled to avoid thermal damage.
6. Inspection and Quality Control
Post-reflow, boards undergo AOI (Automated Optical Inspection) to detect misalignment, solder bridges, or missing components. For complex boards, X-ray inspection may be used to evaluate BGA and hidden joints.
7. Through-Hole Component Insertion
Components that require higher mechanical strength or power handling are inserted manually or with automatic insertion machines into pre-drilled holes.
8. Wave Soldering
The board passes over a wave of molten solder, which bonds the leads to the PCB. This process is typically used for through-hole assemblies.
9. Functional Testing
Once all components are mounted, in-circuit testing (ICT) and functional testing are conducted. These verify that electrical parameters meet design specifications.
10. Conformal Coating and Packaging
A conformal coating may be applied to protect the board from moisture, dust, and chemicals. Final packaging ensures the boards are safe during transport and storage.
Wintech: Your Turnkey PCB Assembly Partner
Wintech is a global leader in electronics manufacturing and material solutions. With decades of experience, we offer full turnkey services that cover the entire PCB lifecycle from design to mass production. Our expertise in high-mix, low to mid-volume production makes us the ideal partner for challenging projects.
Why Choose Wintech?- Advanced capabilities in complex, high-precision PCB Layout and Assembly
- Complete solutions: PCB Design, Manufacturing, PCBA SMT, and Full System Assembly
- Quick turn prototypes and NPI (New Product Introduction) support
- Trusted by numerous Fortune 500 companies
- PCB Design & Layout
- PCB Manufacturing
- PCB Assembly & PCBA SMT
- Quick Turn Fast PCB Prototype Assembly
- New Product Introduction (NPI)
- Plastic Molding
- Metal Precision Machining
With Wintech, your PCBs are engineered for excellence and reliability. Whether you’re developing cutting-edge medical equipment or high-end consumer electronics, we help bring your innovations to life.
Conclusion
The assembly process of a PCB is a detailed, multistep operation that transforms an electronic design into a functional product. From design and solder paste application to component placement and functional testing, each stage requires precision and expertise. Choosing the right partner, such as Wintech, ensures quality, reliability, and long-term success in the electronics industry.
Summary Table
| Step | Description |
|---|---|
| 1. PCB Design & Layout | Creation of circuit design and Gerber files for production. |
| 2. Material Preparation | Collection and verification of PCB and electronic components. |
| 3. Solder Paste Stenciling | Applying solder paste to board pads using a stencil. |
| 4. Pick and Place | Accurate placement of SMD components onto the board. |
| 5. Reflow Soldering | Melting solder paste in a controlled reflow oven. |
| 6. AOI/X-Ray Inspection | Checking for defects or misalignment post-soldering. |
| 7. Through-Hole Insertion | Manually or automatically inserting leaded components. |
| 8. Wave Soldering | Using molten solder to secure through-hole components. |
| 9. Functional Testing | Ensuring electrical performance meets specifications. |
| 10. Conformal Coating | Protective layer application and final packaging. |
